Scientists Fused Eggshell Trash Into Lightweight Metal, No Melting Required

Researchers Turned Eggshell Waste Into a Metal Reinforcement Using Only Friction

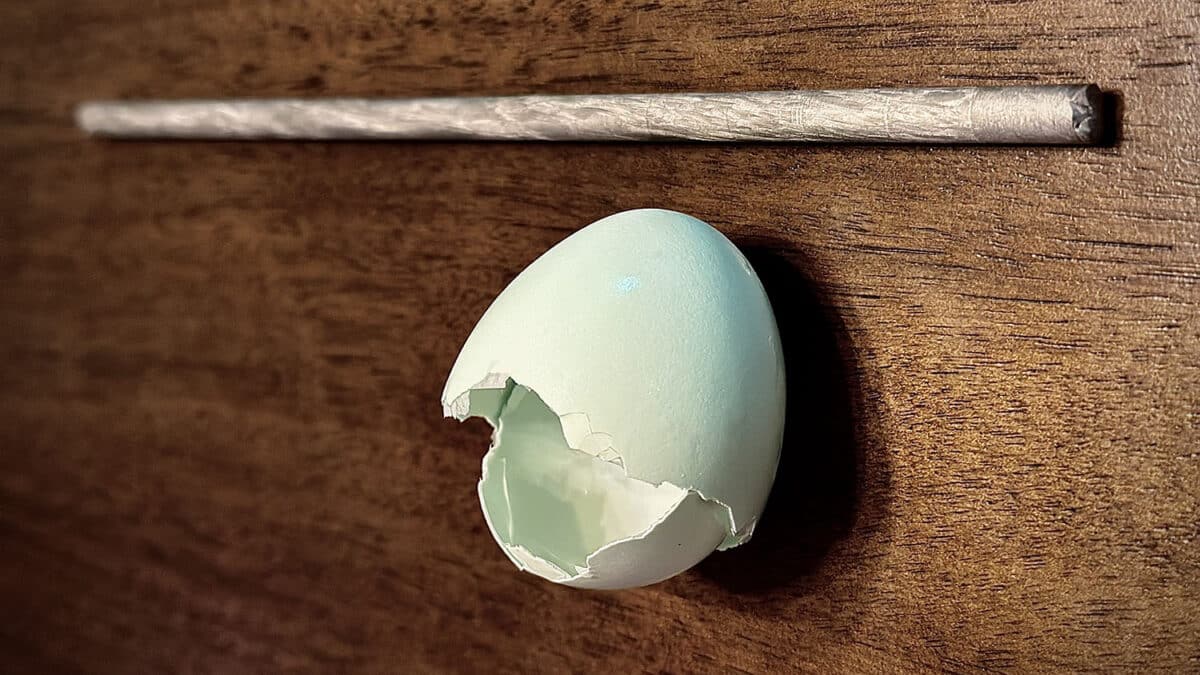

Cracked eggshells usually end up in the trash, but researchers have locked them inside a rod of magnesium, a lightweight metal, without ever melting the metal. In tiny tests, the result held up better under squeezing than plain magnesium made the same way.

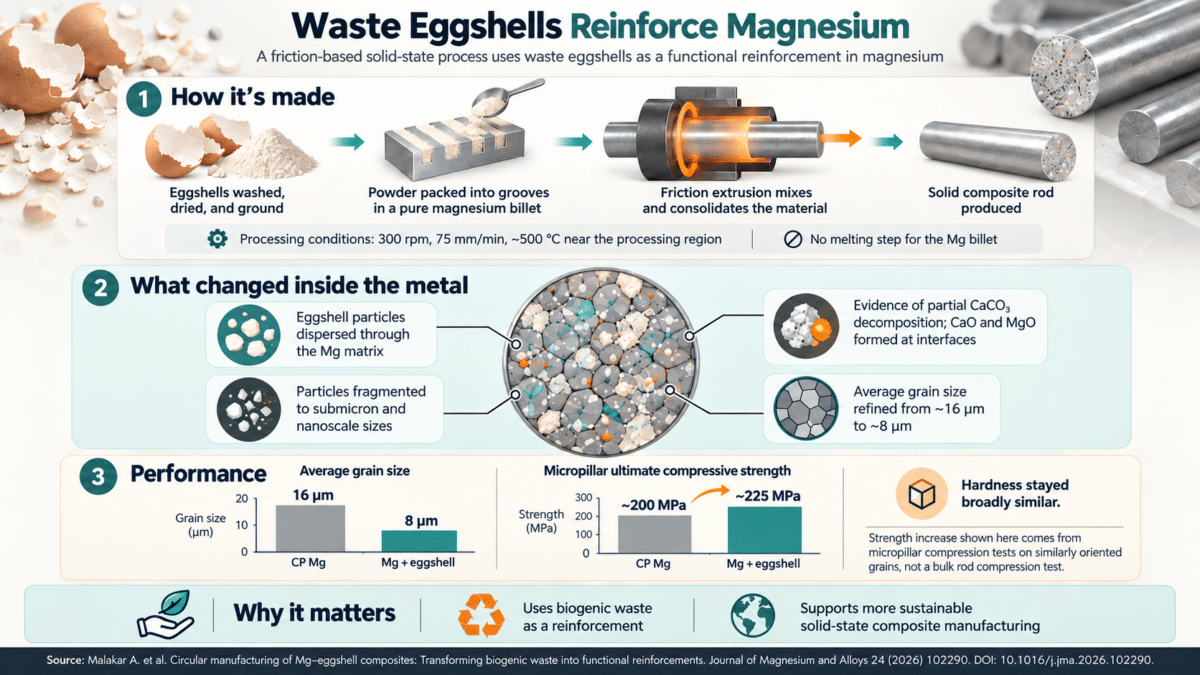

Researchers at North Carolina State University and Pacific Northwest National Laboratory ground ordinary household eggshells into powder, packed it into grooves cut into a magnesium bar, and forced the bar against a spinning tool. Friction and pressure produced the heat that fused powder and metal into one solid rod. Results appear in the Journal of Magnesium and Alloys.

Under a microscope, the eggshell’s main mineral, calcium carbonate, the same stuff found in chalk and limestone, did not sit passively in the metal like gravel in concrete. Much of it shattered, and some appears to have reacted with the magnesium it touched, a chemical link that could explain the strength gain.

Eggshell Powder Fused Into Magnesium Without Melting the Metal

Conventional metal recycling usually means melting and recasting, which burns a lot of energy and can degrade the material. Eggshells pile up as household and agricultural waste, and the authors note that disposing of large quantities can create environmental hazards.

Eggshells are roughly 95 to 97 percent calcium carbonate, a hard mineral, which makes the powder a candidate for stiffening metal the way glass fibers stiffen plastic. Magnesium suits the experiment because it is a low-density metal, the kind engineers want wherever extra weight is costly. Earlier work had mixed eggshell into melted magnesium alloys, but little was known about what happens chemically when eggshell is forced into magnesium through friction extrusion, a process that squeezes heated metal through a rotating die, a bit like toothpaste from a tube. The same family of methods has previously turned loose metal scraps, such as chips and flakes, into solid pieces.

Researchers started with a cylinder of commercially pure magnesium about one inch across. Washed, oven-dried eggshell powder made up about 8 percent of its volume.

Temperatures climbed to roughly 930 degrees Fahrenheit, hot enough to soften magnesium without melting it. The softened metal squeezed out as a rod, and a plain magnesium rod made the same way served as the comparison.

Some Eggshell Fragments Break Down and React With the Magnesium

Under an electron microscope, the broken eggshell fragments measured anywhere from under a millionth of a meter down to billionths of a meter, and their fresh surfaces pressed directly against the surrounding magnesium.

Chemical scans showed some of the calcium carbonate breaking down into calcium oxide, the main ingredient in quicklime, and carbon dioxide gas. Near the edges of some particles, readings carried extra oxygen consistent with a third compound, magnesium oxide, the substance magnesium forms when it reacts with oxygen. The authors called the full chain from calcium carbonate to calcium oxide to magnesium oxide the “most plausible reaction sequence,” and their calculations found that magnesium and the released gas should react readily.

Not every particle reacted. Larger ones stayed largely unchanged, while the tiniest showed heavy reaction. Particle size alone did not decide the outcome, according to the authors, who pointed to local differences in temperature, deformation, and contact with the metal.

Friction extrusion also reshaped the magnesium itself. Intense twisting and squeezing made the metal’s internal crystals break down and regrow at half the size of those in the plain rod. Smaller crystals generally make metal stronger.

Eggshell Magnesium Composite Gains Strength in Microscopic Tests

Hardness testing came out about the same for both materials, which could make the eggshells look pointless.

Tests on microscopic pillars carved from the metal told a different story. Magnesium’s strength depends heavily on which way its crystals face, so the team compared pillars cut from similarly oriented crystals. Both versions started to give way at similar pressure, but the eggshell-laced metal kept resisting as the squeezing continued, peaking at about 225 megapascals, a unit of pressure, versus roughly 200 for plain magnesium. That is a gain of about 12 percent.

Eggshell-derived particles, along with calcium oxide and magnesium oxide, likely explain the late gain by making it harder for tiny defects in the metal’s crystals to keep sliding as pressure built. Because those compounds are scattered in patches rather than forming a continuous barrier, they may have done little in the early going.

Strength was not the goal. Researchers set out to understand what eggshell does inside the metal, and the pillar results come from tiny samples, not a full rod. The authors expect that spinning faster or feeding the metal through more slowly would intensify the reactions, a way to tune the material. They also describe the method as energy-efficient and able to scale up.

Cracked eggshells headed for landfills or compost bins can be forced into magnesium and bond with it chemically, using friction in place of a melt. Whether that yields stronger metal at full scale remains unproven, but the chemistry gives a concrete reason to keep testing waste as a raw ingredient.

---
