Could Steel Foam Make Car Crashes Safer? This Study Suggests Yes

Why This Foam-Filled Metal Might Be the Future of Car Safety

When a car crumples in a wreck, that mangled metal is doing exactly what it’s built to do. Car frames are engineered to fold in a controlled way, absorbing crash force so it doesn’t slam into the people inside. But a new engineering study finds that the metal beams behind a car’s bumper, known as front rails, don’t always crumple as smoothly as intended. Instead, they can buckle in fits and starts, sending sudden jolts through the vehicle that raise the risk of a serious head injury even when the overall crash force hasn’t changed.

Researchers at North Carolina State University tested a fix: swapping the metal inside those front rails for composite metal foam, made from hollow steel balls fused together with trapped air pockets inside. Using computer crash simulations, they found foam-core front rails could withstand impact speeds roughly 32 to 48 percent higher before crossing the thresholds scientists use to estimate fatal brain trauma risk, compared to conventional steel and aluminum rails modeled after those in real trucks and sedans today. The findings were published in the Journal of Composites Science.

That difference matters. A front rail that can handle a harder hit before passing dangerous jolts to the driver could mean the difference between walking away and a traumatic brain injury. Automotive accidents are the third most common cause of traumatic brain injuries, the researchers note.

How Steel Foam Changes Crumple Zones

Most rails on the road today are hollow steel or aluminum tubes shaped like rectangles or octagons. Engineers design them to buckle in a controlled way when the front bumper hits something hard, so the crash energy gets soaked up by bending metal instead of the body a few feet behind it. Researchers compared two of these conventional designs against a new concept: a double-walled aluminum tube with a core of composite metal foam packed inside.

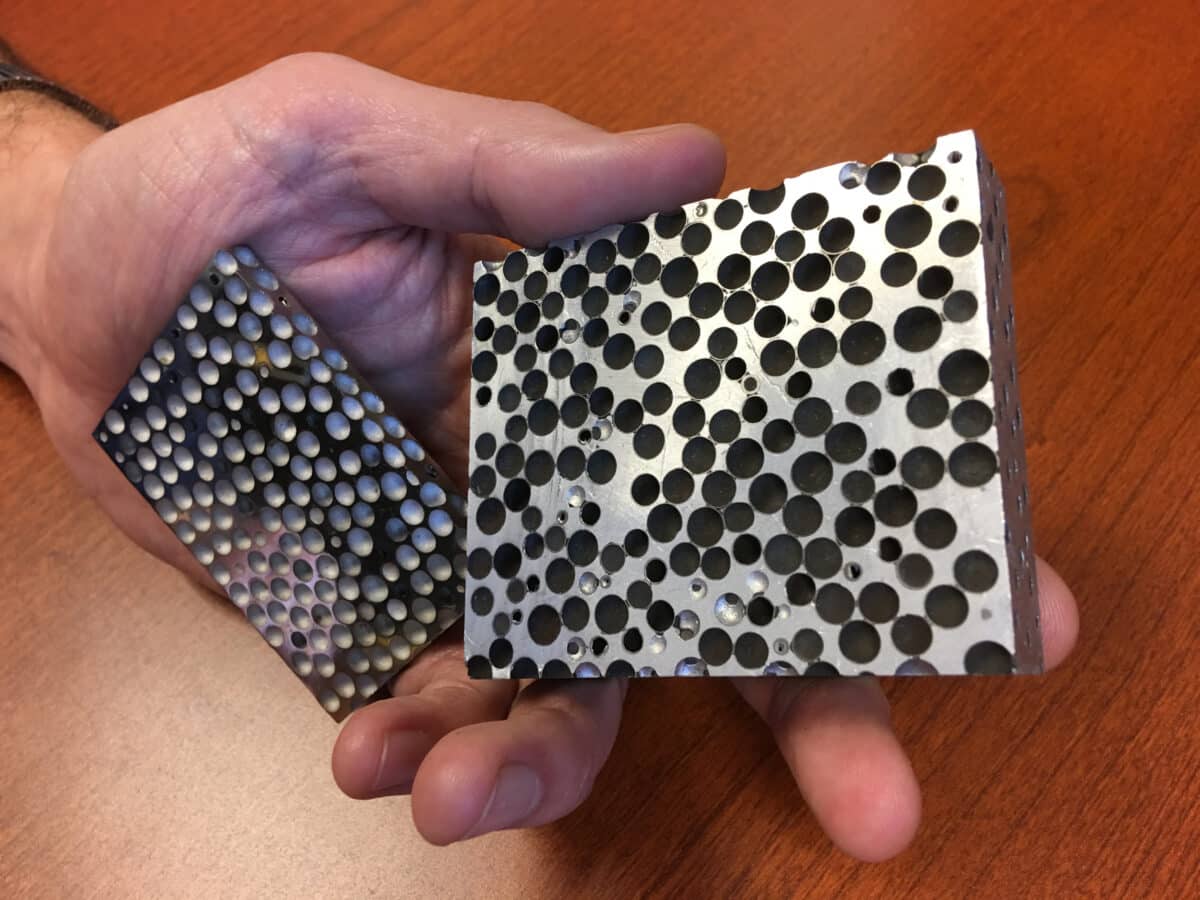

That foam core is the interesting part. It’s built from tiny hollow steel spheres, each about the width of a couple of grains of rice, fused into a solid block of stainless steel. Every sphere traps a pocket of air. When the material gets crushed hard and fast, that air gets squeezed and pressurized, acting like a built-in cushion spread throughout the metal.

Simulating the Crash

Rather than smashing real cars, the team built computer models of three front rail designs: a rectangular steel rail based on a real truck, a double-octagon aluminum rail based on an existing sedan design, and two versions of their new foam-core rail matched to the same weight and length as the conventional designs. The rails were slammed into a simulated wall at speeds from 35 to 65 miles per hour, with vehicle mass factored in based on the load carried by a single rail.

To judge safety, the researchers used two standard measures from the auto safety field: accident severity and the Head Injury Criterion, or HIC. Think of them as danger dials that climb as a crash gets more violent. Once either dial crosses a score of 1000, the paper treats that as the line where a fatal skull fracture or brain injury becomes a real possibility, assuming the rail’s deceleration reaches the occupant.

Results showed a clear pattern. Conventional rails, whether rectangular or octagon-shaped, tended to buckle in a series of folds, each one creating its own spike and dip in force, a pulsing rhythm rather than a smooth one. At lower speeds, both designs kept injury scores under 1000. Push the speed higher, and the rails ran out of room to crumple. They “densified,” basically bottoming out, and the remaining crash energy shot straight through to the occupant. Deceleration at higher speeds spiked past levels linked to skull fractures and brain trauma, with both scores blowing past 1000.

Steel Foam’s Numbers

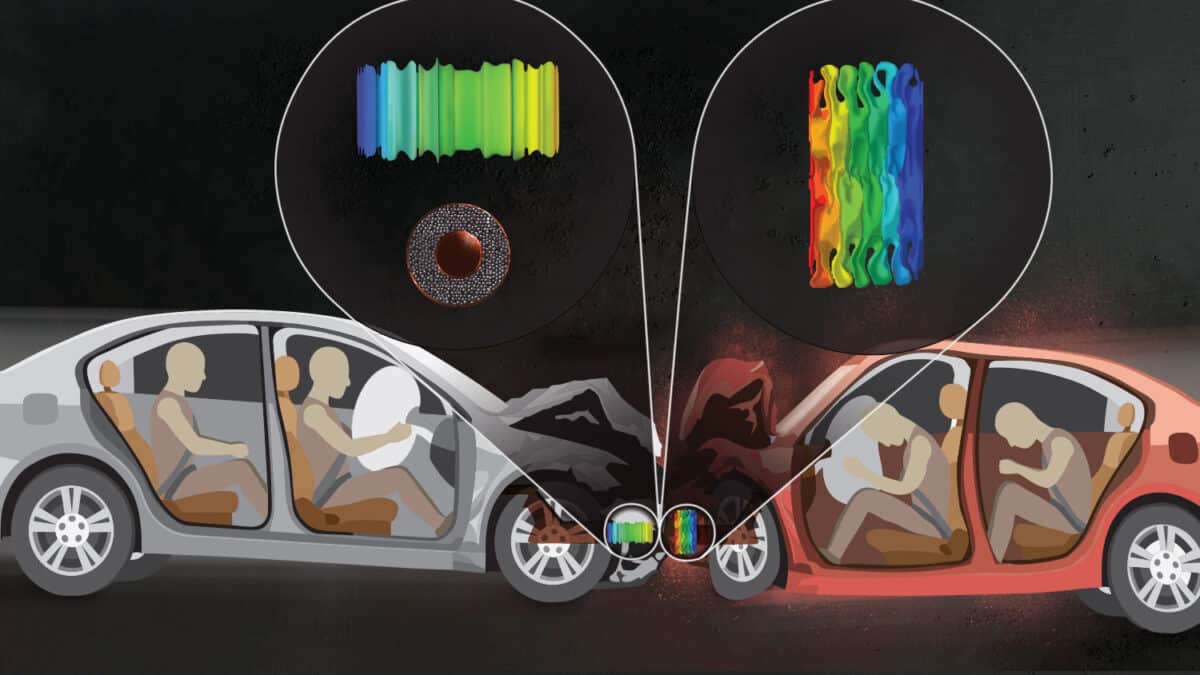

Foam-core rails behaved differently. Instead of a pulsing, uneven crash, the force built up gradually and plateaued, without the sharp spikes seen in the other designs. That happened because pressurized air trapped inside the foam’s steel spheres kept resisting compression evenly, rather than letting the metal buckle unpredictably. Researchers describe the trapped air as functioning “as small airbags” in the structure.

Against a double-octagon rail of the same weight and length, the foam-core design needed an impact speed 33.73 percent higher before its accident severity score crossed the threshold, and 39.50 percent higher before its HIC did. Against the rectangular steel rail, it needed a 31.93 percent higher speed to breach accident severity and 48.24 percent higher to breach HIC. Both conventional designs hit their breaking points at speeds where the foam-filled version was still in a safer zone, and it matched the weight and length of the parts it replaced, so the gain didn’t come from adding bulk.

A Smarter Crumple, Not Just a Stronger Rail

None of this means today’s cars are unsafe. Current rail designs, paired with seatbelts and airbags, already meet federal safety standards. What this research points to is a different way of thinking about crumple zones. A structure that plateaus rather than pulses could give engineers more room before a crash tips into dangerous territory, and that margin is exactly what separates a survivable hit from a catastrophic one. Real-world crash tests still need to confirm it, but the simulations make a solid case that steel foam could be the next step in car safety.

---

Disclaimer: This article describes findings from a peer-reviewed computer simulation study and does not constitute engineering, safety, or purchasing advice. The results have not been validated through physical crash testing and should not be interpreted as a guarantee of real-world performance.

---
