A Math Model May Have Just Cracked A Cancer Immunotherapy Mystery

Why PD-1 Immunotherapy Stops Working: Regulatory T Cells May Help Explain It

Immunotherapy drugs that block PD-1 have transformed cancer treatment by helping the immune system attack tumors. But for most patients, the cancer eventually fights back, and doctors have struggled to pinpoint why. Researchers at the University of California, Irvine built a mathematical model of tumor and immune-cell behavior, tested hundreds of simulated scenarios, then checked the predictions in living animals to find the culprit.

Published in the journal Cancer Research, the findings help explain a frustrating pattern oncologists have watched for years. Checkpoint blockade immunotherapy, which includes PD-1 inhibitors, can produce remarkable results at first; nearly 40 percent of advanced melanoma patients are still living without their disease getting worse three years after starting combined PD-1 and CTLA-4 blockade. Yet most patients experience disease progression within a decade, highlighting how often the benefits eventually fall short.

Scientists have long known that Tregs, immune cells whose job is normally to prevent the body from attacking itself, tend to pile up in tumors after checkpoint therapy. What nobody could say for certain was whether this surge caused resistance or was simply a bystander effect. By pairing simulations with mouse experiments, the team found their answer: a flood of Tregs into the tumor is a major reason PD-1 immunotherapy stopped working over time in this mouse model, a link they confirmed by reducing those cells’ ability to reach the tumor.

Regulatory T Cells Flood Tumors and Blunt PD-1 Treatment

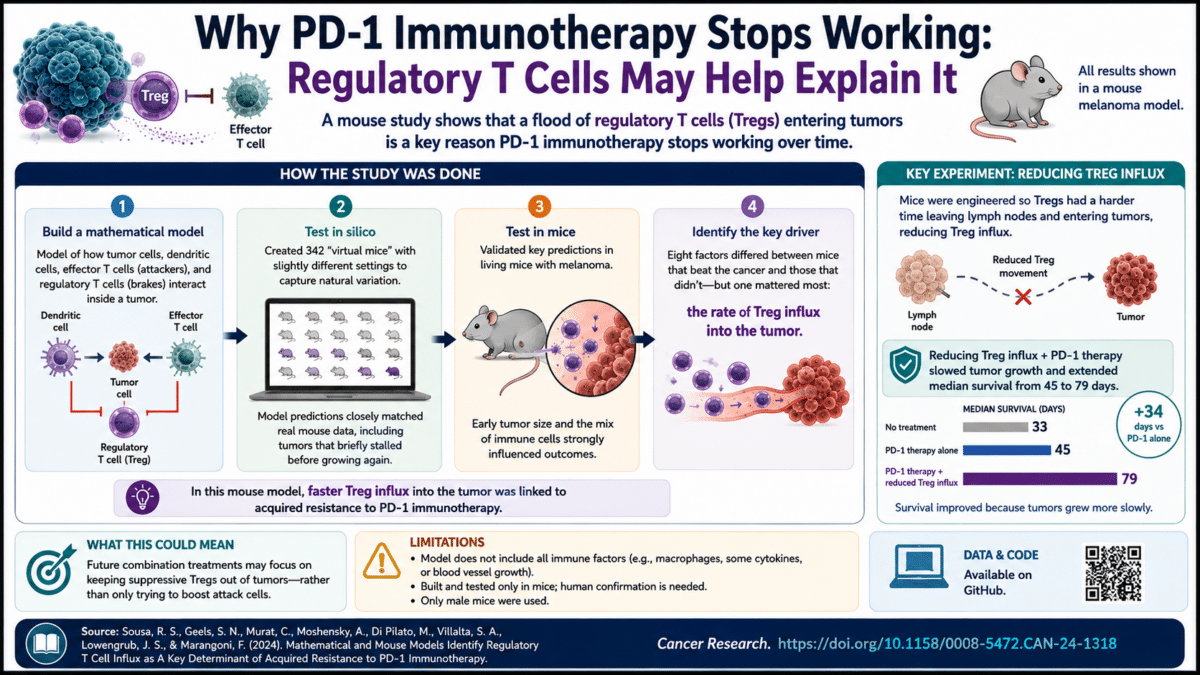

Studying the immune system one experiment at a time is slow and expensive. So the researchers, led by Rachel Sousa, John Lowengrub, and Francesco Marangoni, built a mathematical model made of equations describing how tumor cells, dendritic cells (which alert the immune system to threats), effector T cells (the attack force), and regulatory T cells (the brakes) interact inside a tumor.

To ground the model in real biology, researchers tested it against data from mice implanted with an aggressive melanoma, then created 342 “virtual mice” with slightly different biological settings to capture the kind of variation seen between individuals. They tracked tumor growth and counted immune cells inside the tumors over several weeks. The model’s predictions lined up closely with what actually happened, including a strange pattern where tumors briefly stalled before taking off again, similar to the dormancy sometimes seen in cancer patients.

Regulatory T Cells Predict Which Mice Beat Cancer Early On

Once validated, the team ran experiments that would be impossible with hundreds of live animals. One thing became clear fast: a tumor’s size, and how many immune cells had shown up by the time the body noticed it, made a big difference in whether the tumor spiraled out of control or got shut down. Mice that started with more cancer cells were more likely to see their tumors run wild, a hunch the team confirmed by injecting mice with either a big or small starting dose. Just adding more immune cells wasn’t a fix, either. Pumping up regulatory T cell numbers, even alongside more attack cells, tended to make things worse unless the attack-cell boost was big enough to tip the balance back.

A natural experiment made the same point. Researchers compared ordinary lab mice to so-called “Wildling” mice, bred to carry the kind of natural microbiome found in wild mice rather than the more controlled microbiome of standard lab mice. Wildlings started out with more of every immune cell type measured, and the model predicted that head start alone would beat the tumor. It was right: three of five Wildlings fully rejected their melanomas, while none of the standard lab mice did.

That set up the real payoff: what actually decides whether PD-1 immunotherapy stops working. After tuning the model to match the roughly 30 percent full-response rate seen in real treated mice, researchers dug into what separated the mice that beat their cancer from the ones that didn’t. Eight biological factors stood out, but one mattered more than the rest: how fast regulatory T cells poured into the tumor.

To test that prediction, scientists engineered mice in which regulatory T cells had a harder time leaving nearby lymph nodes and entering tumors, reducing the influx of these cells directly. Mice with this reduced Treg influx, when also given PD-1 therapy, saw tumors grow far more slowly than mice given PD-1 alone. Median survival jumped from 33 days in untreated mice to 79 days in mice receiving both PD-1 blockade and reduced Treg influx, more than double the 45-day survival with PD-1 alone.

Every animal in the study was male, since the melanoma cell line used is derived from male mice and would trigger an artificial immune reaction in females. The model relies entirely on mouse data, and confirming these dynamics in human tumors remains an open question.

Blocking Treg Movement Could Sharpen Future Combination Therapies

For cancer treatment, the takeaway is less about any single new drug and more about strategy. If regulatory T cell influx drives resistance to PD-1 blockade, future combination treatments might focus less on boosting attack cells and more on physically keeping suppressive cells out of the tumor. Drugs that block that trafficking without disabling attack cells remain difficult to design, since both rely on overlapping chemical signals, but this study hands researchers a concrete, testable target.

---

Disclaimer: This article summarizes findings from a peer-reviewed animal study. The results were obtained in a mouse model and have not yet been confirmed in human patients. This is not medical advice; readers with questions about cancer treatment should consult a qualified oncologist.

---
