How A Frozen Beam Of Hydrogen Helped Scientists Put The Laws Of Physics To Their Toughest Test Yet

Cracking a 15 year physics mystery, researchers measured the precise size of a proton.

Physics broke down somewhere between a proton and a muon. Not dramatically, not visibly, but quietly enough to keep researchers arguing for 15 years over something that should have been simple: how big is a proton?

Protons are the positively charged particles at the center of every atom. For most of the 20th century, physicists were confident they knew their size. Then came a disruptive experiment using muonic hydrogen, a bizarre, fleeting form of the atom in which the electron is replaced by a muon. A muon is a subatomic particle similar to an electron but roughly 200 times heavier, and it exists for only a fraction of a second before decaying. Because the muon orbits so much closer to the proton, it is far more sensitive to the proton’s size. When experiments in 2010 and 2013 used muonic hydrogen to measure the proton’s charge radius, the answer came back noticeably smaller than what ordinary hydrogen measurements had long suggested. The mismatch was large enough that physicists treated it as a real problem, not a statistical fluke. They called it the proton radius puzzle, and nobody could explain it.

Now, a team at the Max Planck Institute of Quantum Optics in Germany appears to have resolved the long-running dispute. Using a laser measurement of ordinary hydrogen that the authors describe as unprecedented for laser spectroscopy, the researchers pinned down the proton’s size in close agreement with the muonic result. Their work, published in the journal Nature, delivers the most stringent test of the Standard Model of physics ever performed with hydrogen. The agreement between theory and measurement reached 0.7 parts per trillion, roughly equivalent to detecting a single drop of water dissolved in about 20 Olympic swimming pools.

Why the Proton Radius Puzzle Stumped Physics for 15 Years

At the center of this story is a theory called quantum electrodynamics, or QED. It governs how light and matter interact at the quantum level and ranks among the most successful scientific theories ever constructed, capable of predicting certain measurable quantities to more than ten significant digits. Hydrogen, the simplest atom in existence, is a natural stress test for it.

One of QED’s tasks is predicting the precise energy levels of hydrogen, and those predictions depend partly on knowing the proton’s size. For decades, physicists extracted the proton’s charge radius from hydrogen measurements and used it to check whether QED’s predictions matched reality. But previous atomic hydrogen measurements disagreed with one another and with the muonic result, and none was precise enough to settle the issue. A clean test of QED at the level of experimental precision was out of reach.

Pushing Hydrogen Laser Spectroscopy to New Limits

Lead author Lothar Maisenbacher and colleagues focused on a specific energy jump inside hydrogen, the moment an electron leaps between two energy states known as the 2S and 6P levels. Nailing down the exact frequency of light that triggers this jump required a precision the authors describe as “to our knowledge unprecedented for laser spectroscopy.”

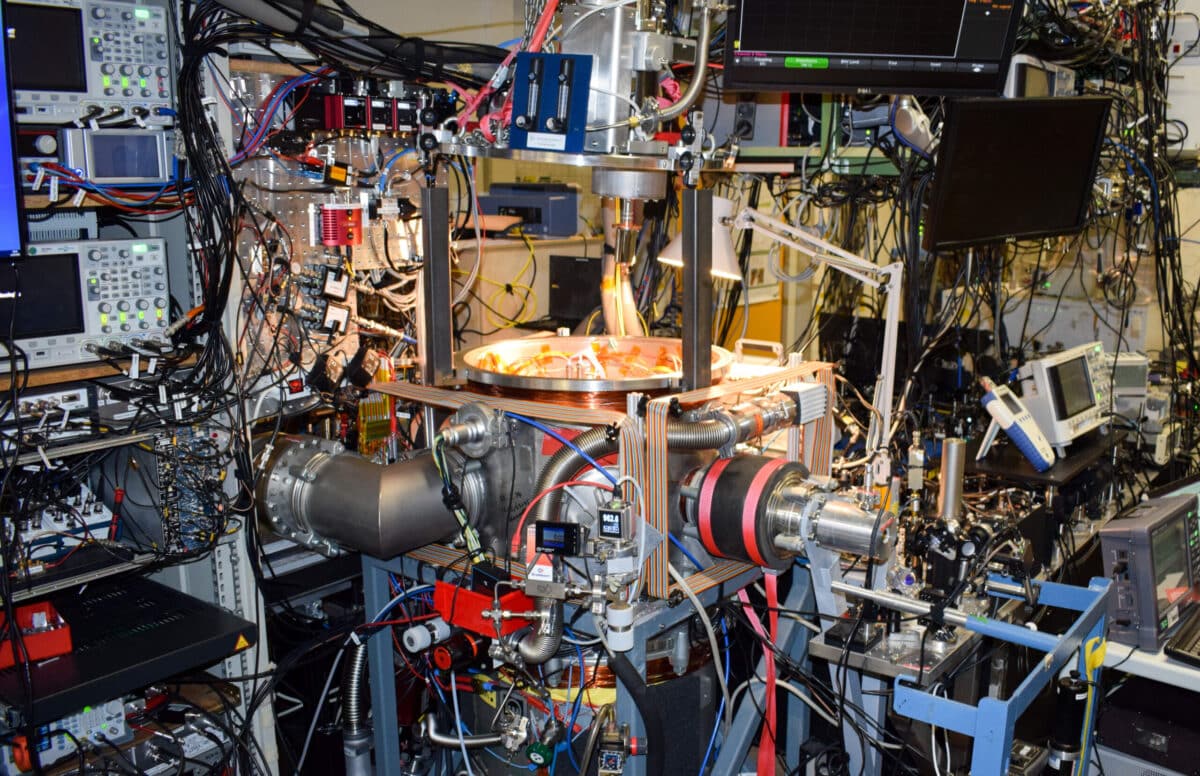

Getting there meant eliminating error wherever it could hide. Hydrogen atoms were cooled to within a few degrees of absolute zero by passing them through a copper nozzle chilled to roughly minus 450 degrees Fahrenheit, slowing the atoms to a crawl and making their behavior far more predictable. That ultracold beam was then probed with a finely tuned laser, and over three separate measurement campaigns, the team logged 3,155 individual measurements, sorting atoms by speed to track and correct for the motion of each group.

One of the sneakier obstacles was something called the light force shift. When atoms pass through the crisscrossing laser beams used in the experiment, the light itself nudges them in ways that can throw off the measurement. At ordinary scales this effect would be trivial, but at the precision required here it was large enough to corrupt the result. The team built a detailed model of how the light was pushing the atoms around, then confirmed it was right by deliberately changing the angle of the atomic beam and verifying that the resulting distortions matched what the model predicted.

A Resolved Proton Radius Puzzle Opens the Door to Deeper QED Tests

After accounting for every known source of error, the proton charge radius came out to 0.8406 femtometers, a femtometer being one quadrillionth of a meter. That figure is at least 2.5 times more precise than any previous ordinary hydrogen measurement and lands squarely in line with the muonic result, disagreeing with the older, larger value by 5.5 sigma, a gap so wide it is effectively impossible to dismiss as chance.

With the proton’s size settled, the team plugged it into QED’s equations alongside a separate, well-established hydrogen measurement, then compared the Standard Model’s theoretical prediction for the 2S–6P transition frequency against what they had actually observed. Prediction and measurement agreed to within 0.7 parts per trillion.

The same data also produced what the authors describe as the most precise test so far of bound-state QED corrections in hydrogen, the subtle adjustments physicists must include to account for quantum effects. Those corrections were confirmed here to within 0.5 parts per million.

For years, conflicting proton radius values prevented a clean test of QED at the level of the experimental uncertainties. That obstacle now appears cleared, though the authors note that further theoretical refinements and measurements in additional hydrogen transitions and deuterium will be needed to keep pushing the boundaries of what QED can be asked to prove.

---
