This Ultra-Thin Face Tattoo Knows When Your Brain Is Too Stressed To Think Clearly

New Tech Could Let Your Boss Know When You’re Mentally Checked Out

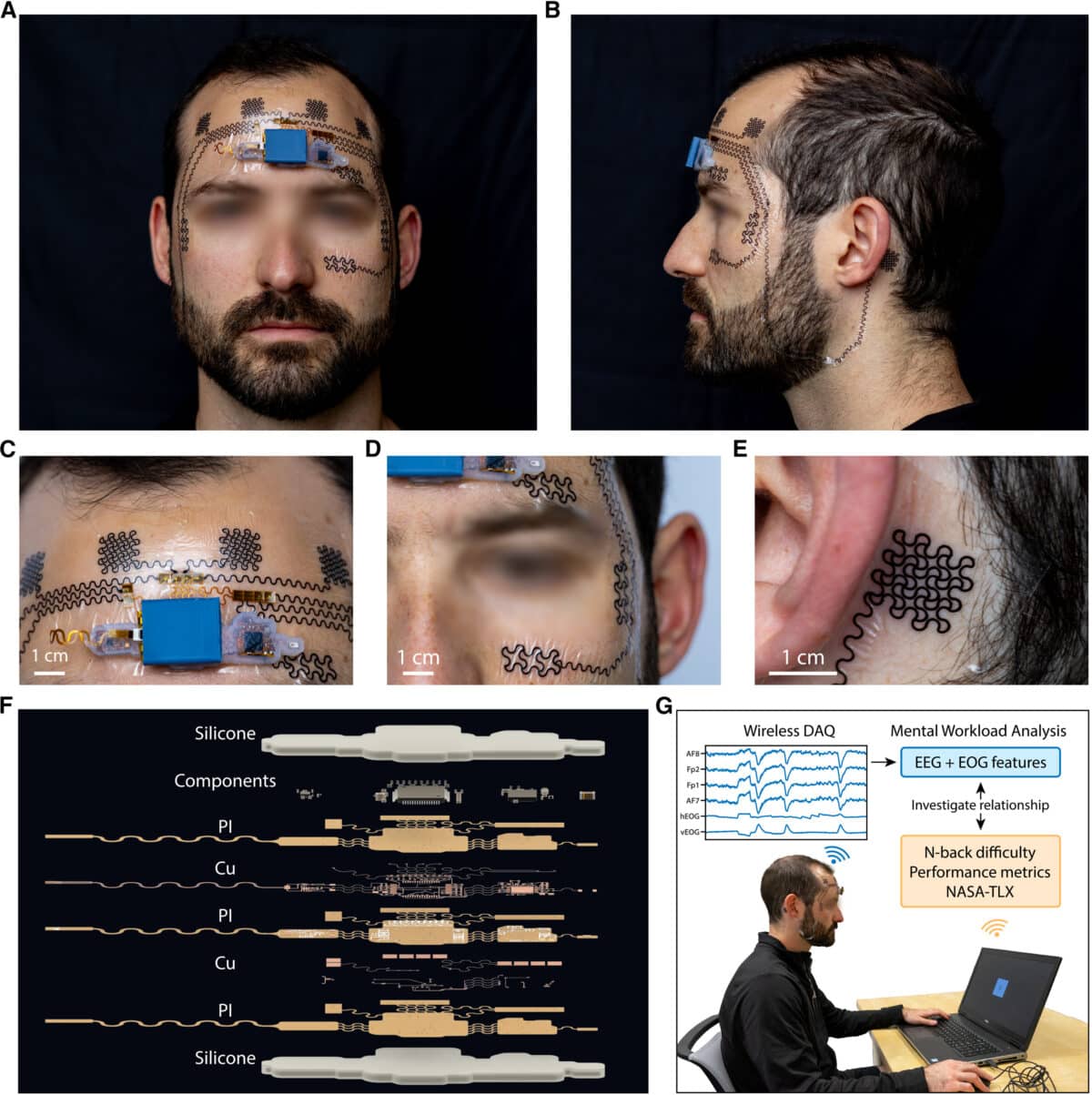

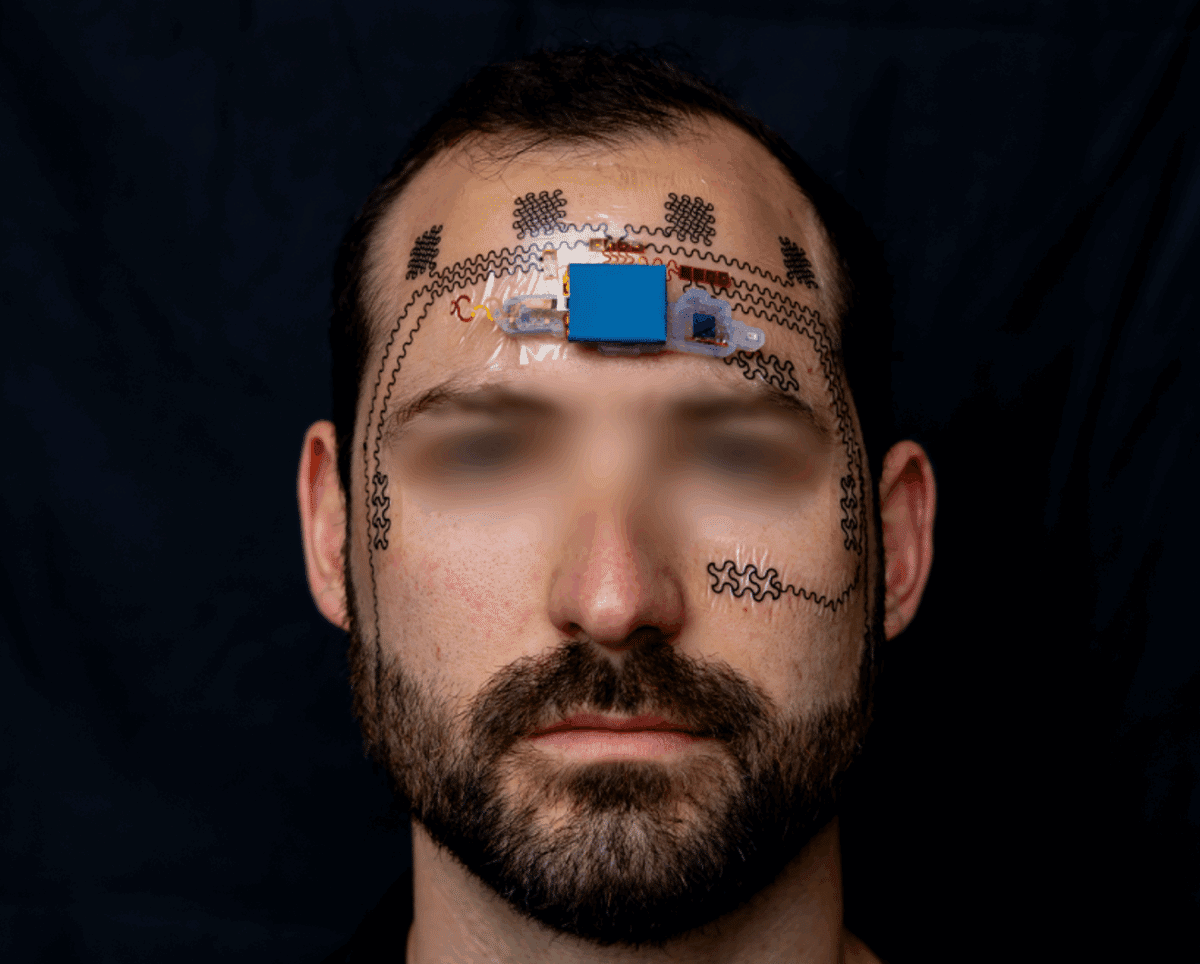

AUSTIN — Your boss might soon know exactly how stressed you are at work, and your car could tell when you’re too mentally exhausted to drive safely. Researchers at the University of Texas at Austin have developed a “forehead e-tattoo” – a wireless, paper-thin device that sticks to your skin like a temporary tattoo and monitors your brain activity to determine how mentally overloaded you are.

The breakthrough device successfully tracked mental workload in real-time during cognitive tests, representing a major leap forward in wearable brain-monitoring technology. Unlike bulky brain-monitoring machines that require gel-coated electrodes and tangled wires, this e-tattoo is so thin and flexible that users barely notice they’re wearing it. At just 117 micrometers thick – thinner than a human hair – and weighing only 4.1 grams without its battery, the device represents a significant advance in portable brain monitoring.

According to the researchers, mental workload directly impacts human cognitive performance and becomes “particularly important in high-complexity, safety-critical tasks where reductions in performance can and have resulted in devastating losses of lives and assets.”

“Technology is developing faster than human evolution. Our brain capacity cannot keep up and can easily get overloaded,” says lead author Nanshu Lu in a statement. “There is an optimal mental workload for optimal performance, which differs from person to person.”

How the Brain-Reading E-Tattoo Actually Works

The device combines two types of brain monitoring that have traditionally required separate, cumbersome equipment. It measures EEG signals (brain waves) and EOG signals (eye movements) – both key indicators of mental state.

The innovation lies in the electrode design. Researchers created what they call “APC-GPU electrodes” – flexible graphite strips coated with a special adhesive polymer blend that significantly reduces electrical resistance between the device and skin while creating a stronger bond that stays put during physical activity.

During testing, the e-tattoo proved remarkably resilient to movement. The researchers compared it directly to a commercial brain monitoring system and found that while the traditional system produced highly erratic readings when participants moved around, walked, or ran, the e-tattoo maintained stable signals throughout these activities.

Scientists Put Mental Overload to the Test

Researchers recruited six healthy adults aged 20-33 and had them perform increasingly difficult memory tasks while wearing the e-tattoo. The test, called a “dual N-back task,” required participants to remember both the positions and letters of stimuli that appeared on a screen, with difficulty levels ranging from 0-back (easiest) to 3-back (most challenging).

As the tasks became more demanding, the e-tattoo detected clear patterns in brain activity. Participants showed increased theta and delta brain waves – associated with mental effort – while alpha, beta, and gamma waves decreased. These physiological changes correlated with participants’ self-reported stress levels using NASA’s standard Task Load Index questionnaire.

Machine learning algorithms trained to recognize these patterns achieved impressive accuracy in predicting mental workload levels, successfully identifying overload states in all six participants across all difficulty levels. For one participant, the system showed an 89% correlation between predicted and actual mental workload over a 2.5-hour testing session.

Potential Applications the Researchers Envision

The researchers specifically mention several potential applications for their technology. They note that mental workload assessment has been studied “particularly for vehicle drivers, aircraft pilots, air traffic controllers, and robot teleoperators.”

However, the team acknowledges that these applications would require validation “in actual operational environments like aviation or healthcare settings” before becoming reality.

The e-tattoo solved several problems that have plagued previous wearable brain monitors. Traditional devices often lose signal quality over time as adhesive gels dry out, typically within a few hours. The new e-tattoo actually improved its performance over time; its electrical contact with skin got better as participants began to sweat lightly during testing.

The device’s power efficiency allows a small 150-milliamp battery to power it for more than 28 hours of continuous use. The wireless system successfully transmitted brain data to smartphones with less than 0.07% data loss within one meter.

Current Limitations and Next Steps

The technology faces several significant limitations before real-world use. At the time of testing, the system only worked on hairless areas of the forehead, limiting which brain regions it can monitor. Because the adhesive electrodes aren’t compatible with hair, placement options are limited, and naturally not ideal for the average person.

Additionally, the study involved just six participants in controlled laboratory conditions, using artificial cognitive tasks rather than real-world scenarios.

Long-term wearability needs improvement, particularly regarding sweat management and skin breathability during extended use. Manufacturing scalability and regulatory approval for medical applications also remain unaddressed.

However, the system has advantages for mass production. Unlike previous technologies requiring expensive materials, this system uses commercially available components. Researchers estimate the cost of materials for each disposable e-tattoo at less than $20.

“Being low cost makes the device accessible,” says co-author Luis Sentis from UT Austin. “One of my wishes is to turn the e-tattoo into a product we can wear at home.”

While significant hurdles remain before these devices reach everyday use, the successful demonstration in controlled conditions represents meaningful progress toward brain-computer interfaces that could enhance safety in high-stakes occupations.
