Apple’s ‘Retina Display’ Undershoots What Your Eyes Can Actually See

When Apple introduced the Retina Display in 2010, the company made a bold claim: the screen packed in so many pixels that the human eye couldn’t discern individual dots. Steve Jobs declared it had crossed a magical threshold—matching the limits of human vision itself.

Turns out, that wasn’t quite true.

A study published in Nature Communications reveals that human eyes can detect significantly more detail than tech companies have assumed. Researchers at the University of Cambridge and Meta found that eyes can perceive up to 94 pixels per degree for high-contrast content like text—roughly 50% sharper than the “Retina Display” threshold. Even Apple’s latest iPad Pro, with its Ultra Retina XDR screen, delivers only about 65 pixels per degree when held at a comfortable reading distance.

“This demonstrates that the 60-65 ppd range is not the ‘retinal resolution’ for a display,” the researchers wrote.

The gap matters. For over a decade, the display industry has operated under the assumption that 60 pixels per degree represents the ceiling of human perception. That number came from the standard eye chart test—the familiar poster with progressively smaller letters. Achieving 20/20 vision means resolving details at one arcminute of visual angle, which translates to 60 pixels per degree. But the Cambridge team discovered that younger adults with healthy vision routinely exceed this benchmark. Some participants in the study could see details as fine as 120 pixels per degree.

How Researchers Measured the True Limits of Human Vision

Measuring the true limits of vision required solving a technical puzzle. Digital displays can only reproduce images crisply at their native resolution. Trying to show intermediate resolutions demands digital resampling, which introduces artifacts that contaminate the measurements.

The research team, led by Maliha Ashraf, Alexandre Chapiro, and Rafał Mantiuk, built an inventive workaround: a 27-inch 4K monitor mounted on a motorized track. Moving the screen closer increased the pixels per degree; moving it farther decreased them. The setup was actually a high-tech remake of a 130-year-old experiment from 1894, when researcher Theodor Wertheim used wire gratings on a movable frame to study vision.

Eighteen participants sat in a dark room, watching patterns flash on the traveling display. Patterns consisted of high-contrast gratings—alternating light and dark stripes wrapped in a blurred bubble. Participants identified which of two time intervals contained the pattern, and a computer algorithm adjusted the display distance based on their answers, homing in on the threshold where they could just barely detect the stripes.

The experiment tested three types of patterns: black-and-white, red-green, and yellow-violet. Researchers also tracked how resolution limits changed when participants looked at the center of the screen versus 10 or 20 degrees to the side, simulating the difference between direct and peripheral vision. To confirm the findings applied to real content and not just test patterns, they also measured thresholds using actual text rendered in both standard and dark mode formats. Text results closely matched the pattern results.

Why Your 8K TV Might Be Overkill

Practical concerns emerge when considering display purchases. The research team built a model translating their measurements into real-world viewing scenarios, and the results challenge current industry standards.

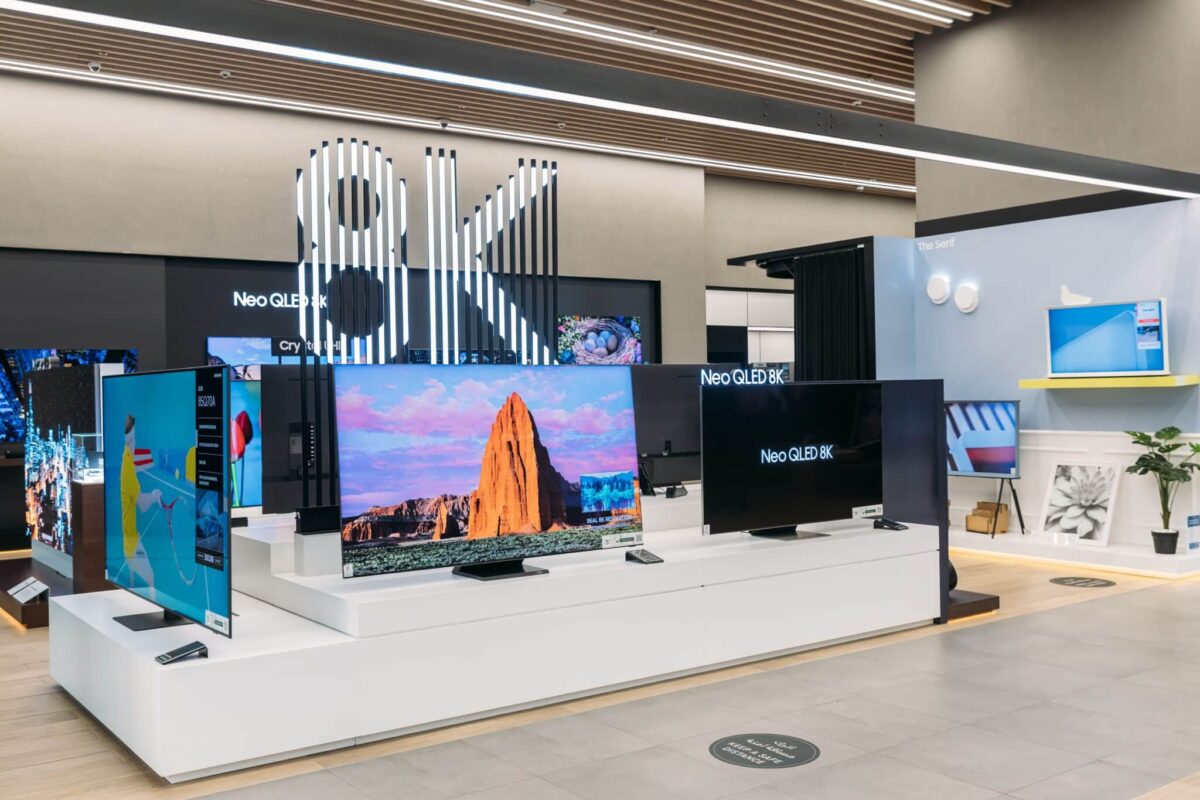

Take 8K televisions. The International Telecommunication Union recommends viewing 8K displays from between 0.8 and 3.2 display heights away. But the Cambridge model shows those recommendations are overly conservative. According to the new data, sitting farther than 1.3 display heights from an 8K screen means most people won’t perceive any benefit from the extra resolution. For a 65-inch 8K TV, that’s about 3.5 to 4 feet. At typical couch distances of 8 to 10 feet, most viewers would not see a meaningful sharpness gain over 4K.

Desktop monitors also reveal a gap between current technology and human capability. A typical 27-inch 4K display at arm’s length hovers near 60 pixels per degree—right at the old 20/20 vision standard but well below the 94-pixel-per-degree benchmark the study identified.

Phone screens present an interesting case. At close reading distance, a modern phone like the iPhone 15 nears, but does not meet, the 94-pixel-per-degree average limit for high-contrast detail.

Virtual reality faces the biggest challenge. Most current headsets render well below the eye’s central limit, which is why vendors use foveated rendering. The new data suggests tuning color and luminance differently across the field could provide additional performance benefits.

The Hidden Problem with Video Streaming Quality

One of the study’s more technical discoveries has far-reaching consequences for video streaming and image formats. Standard practice in compression assumes human eyes are much less sensitive to color details than brightness details. Nearly every video format, from JPEG images to H.265 video, reduces color information by half based on this assumption.

The new data suggests this practice needs reconsideration, at least for red and green. The achromatic resolution limit hit 94 pixels per degree, while red-green patterns came in at 89 pixels per degree—a negligible difference. Only yellow-violet patterns showed a substantial drop to 53 pixels per degree.

Current compression algorithms typically cut resolution for all color channels equally. If the red-green channel can be perceived nearly as sharply as black-and-white, current schemes may be discarding visible information. At the same time, the yellow-violet channel could potentially be reduced more than current practice without affecting perceived quality.

Your Peripheral Vision Can’t See Color Nearly as Well

Looking straight ahead delivers the sharpest vision humans can muster. As an object moves toward the edge of the visual field, the ability to see fine details plummets. The study quantified exactly how much and revealed that the drop-off differs dramatically between brightness and color.

For black-and-white patterns, resolution declined 2.3 times between the center of vision and 10 degrees to the side. But for both red-green and yellow-violet patterns, the decline was much steeper—nearly five times at 10 degrees compared to dead center.

By 20 degrees into the periphery, participants could only detect black-and-white patterns at 21 pixels per degree, red-green at 7 pixels per degree, and yellow-violet at just 5 pixels per degree.

These measurements have practical applications for VR and AR displays, which use a technique called foveated rendering. Headsets track where users are looking and render the center of vision in high detail while reducing quality in the periphery. Most foveated rendering systems only account for brightness sensitivity. The new data shows they could save even more computing power by dialing down color resolution more aggressively away from the center of the gaze.

For consumers, the gap between current technology and perceptual limits means room remains for noticeable improvements. Displays that genuinely match human acuity would make text crisper, eliminate the faint pixel grid visible on close inspection of current screens, and remove the subtle blur that viewers might not consciously notice but that affects perceived image quality.

Whether manufacturers will invest in reaching these higher thresholds depends on costs, battery life, and whether consumers will pay for the difference. Phone makers appear closest to the target. TV manufacturers have already exceeded what most people can perceive at typical viewing distances, making 8K a solution in search of a problem for living room setups. Monitor makers and VR developers have the farthest to go.

These limits reflect high-contrast content and a relatively young sample, so real-world perception will vary. But human vision has more resolving power than the industry has given it credit for. Tech companies now have a clearer target, backed by rigorous measurement rather than marketing calculations. Whether they’ll aim for it remains to be seen.

---

Disclaimer: This article reports on a single peer-reviewed study measuring visual resolution limits under specific laboratory conditions using high-contrast stimuli. Individual visual capabilities vary based on age, vision health, viewing conditions, and other factors. The findings represent population averages from a relatively young sample (mean age 25.5 years). Display technology assessments reflect current consumer products as of publication and are based on typical viewing distances. Readers should consult eye care professionals for individual vision assessments.

---
